Trek

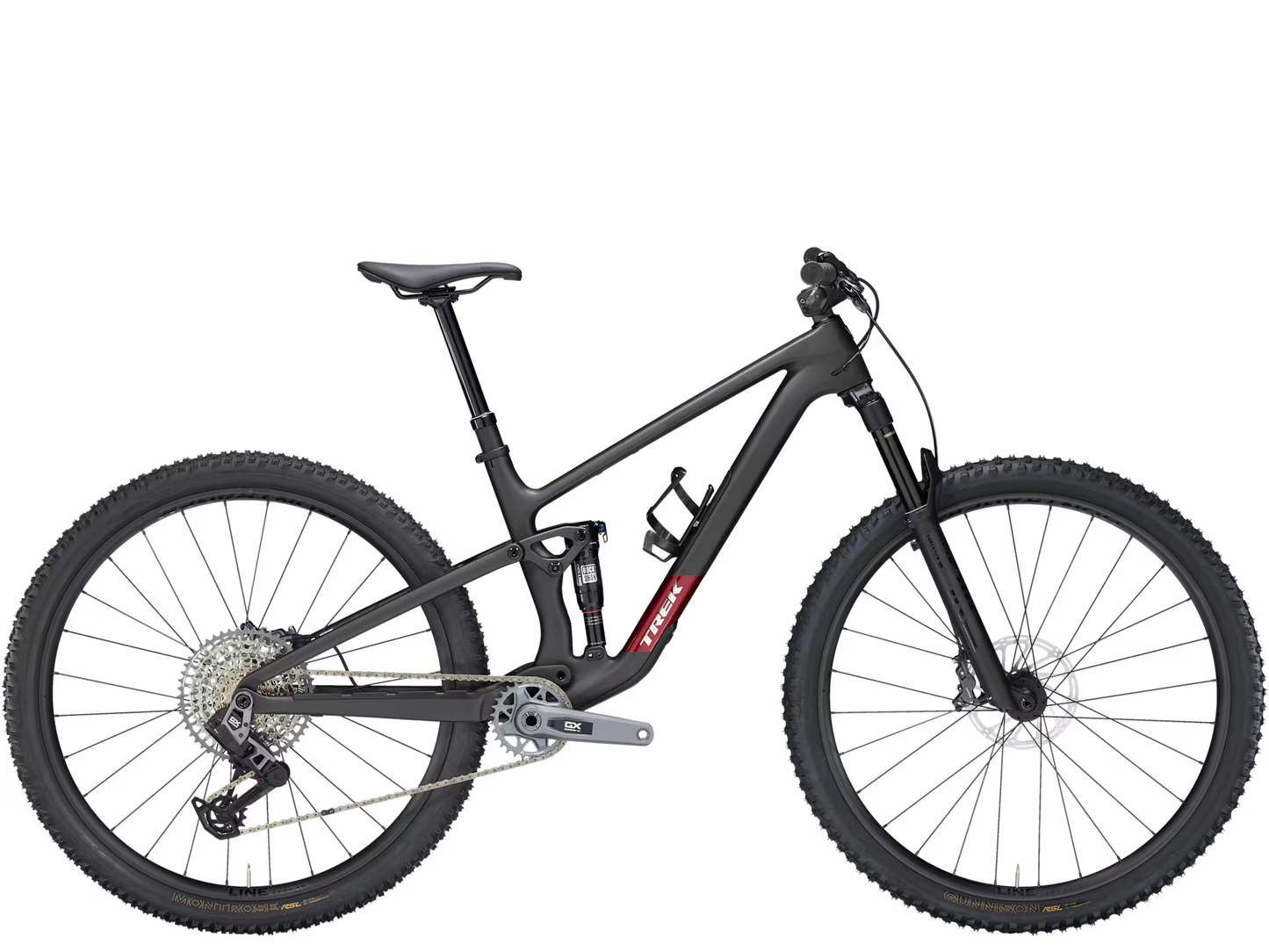

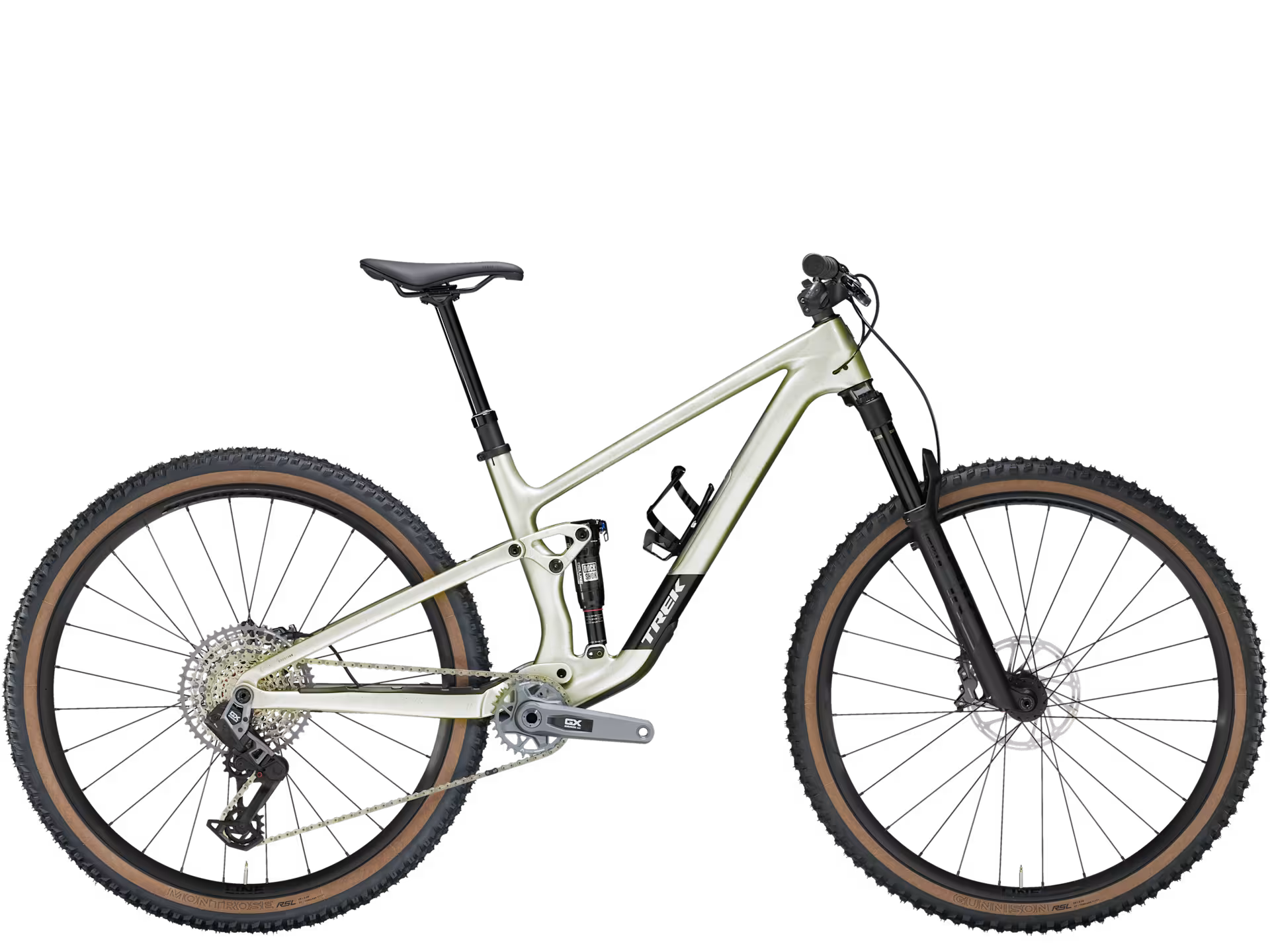

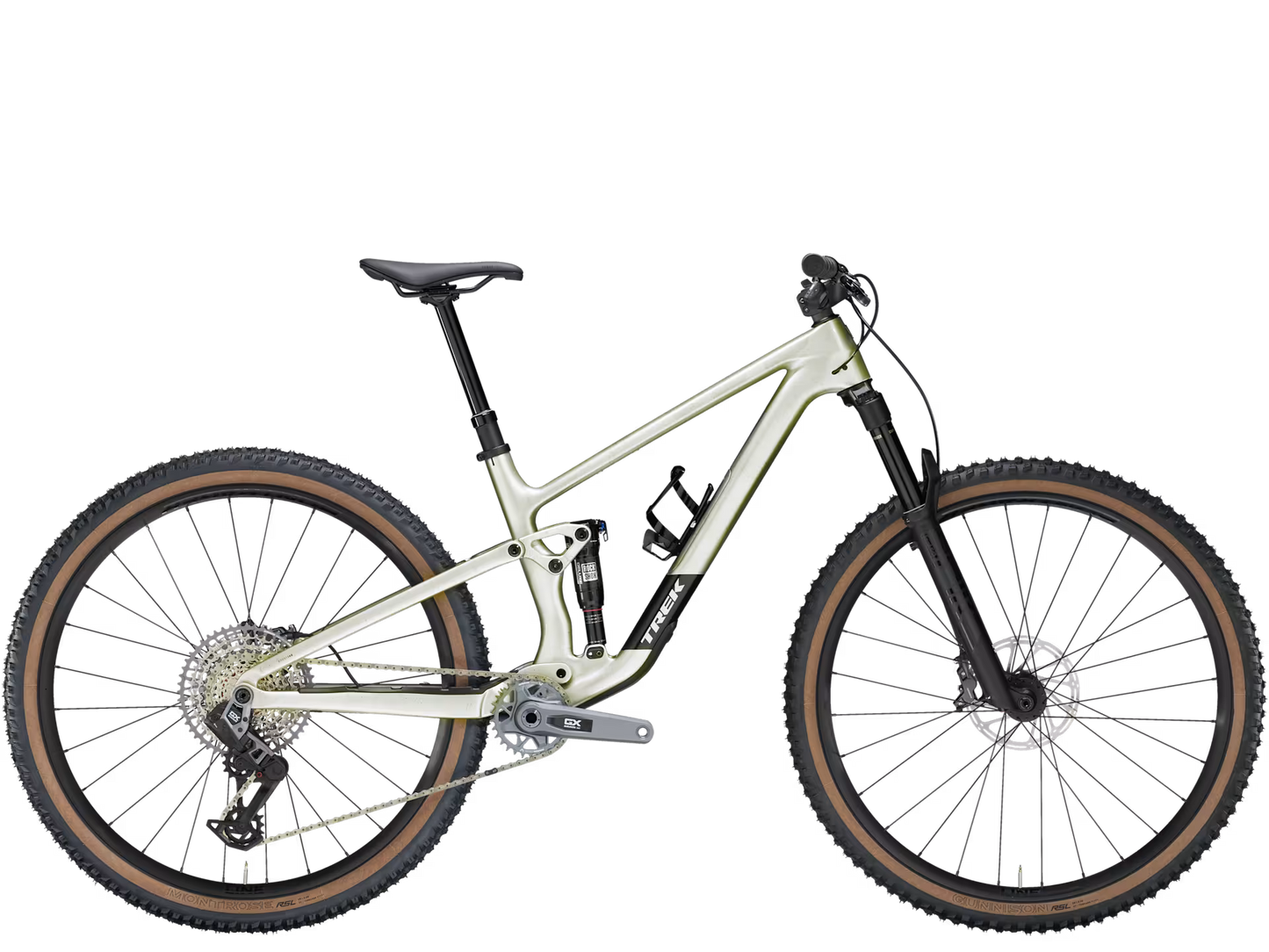

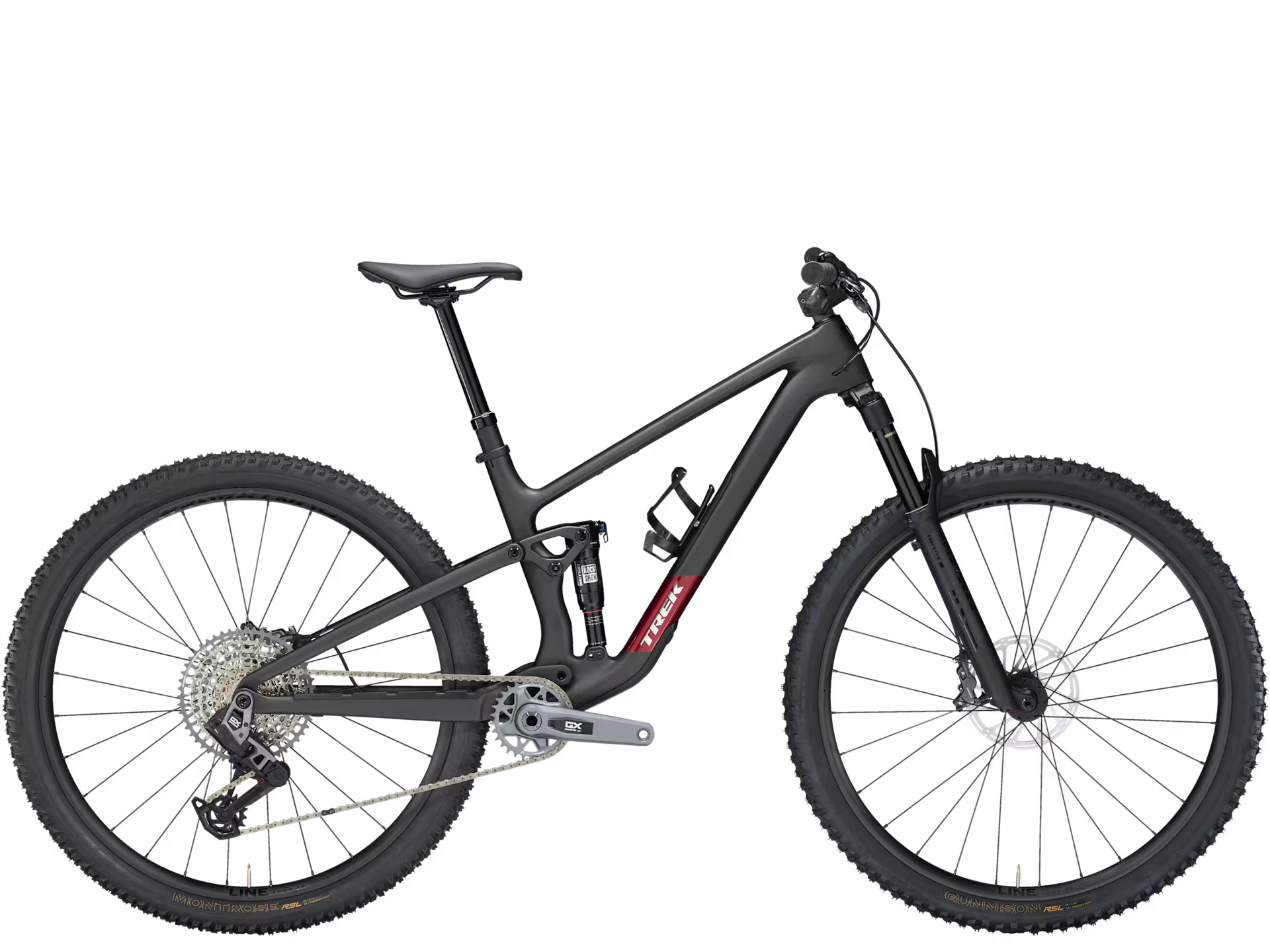

Top Fuel 9.8 GX AXS Gen 4

Top Fuel 9.8 GX AXS Gen 4

R 125,000.00
R 125,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
Size

The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.

*Frame Size: XL, L, S, M, ML
OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm travel
*Fork Size: XL, L, S , M, ML
RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxel Stealth, 130 mm travel
*Shock Size: XL, L, S , M, ML
RockShox Deluxe Ultimate RCT, 185 mm x 50 mm


Specifications
*Wheel front Size: S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Size: XL, L, M, ML Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear Size: S
Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5"
Size: XL, L, M, ML Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29"
*Skewer rear Size: XL, L, S, M, ML Bontrager Switch thru-axle, removable lever
*Tyre Size: S
Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40"
Size: XL, L, M, ML Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
Size: XL, L, M, ML Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
*Tyre part Size: XL, L, S, M, ML
Bontrager TLR sealant, 180 ml/6 oz
*Rim strip Size: XL, L, S, M, ML
Bontrager TLR
Max tyre size Frame: 29x2.50", Fork: See manufacturer


Specifications
*Battery Size: XL, L, S, M, ML
SRAM AXS battery pack (with charger)


Specifications
*Shifter Size: XL, L, S, M, ML
SRAM AXS POD
*Rear derailleur Size: XL, L, S, M, ML
SRAM GX Eagle AXS, T-Type
*Crank Size: XL, L, S, M, ML
SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
*Bottom bracket Size: XL, L, S, M, ML
SRAM DUB MTB Wide, 73 m, BSA threaded
*Cassette Size: XL, L, S, M, ML
SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
*Chain Size: XL, L, S, M, ML
SRAM GX Eagle, T-Type, 12-speed
Max. chainring size 1x: 34T, min 30T


Specifications
*Saddle Size: XL, L, S, M, ML
Verse Short Comp, steel rails, 145 mm width
*Seat post Size: S Bontrager Line Dropper, 100mm travel, Maxflow, internal routing, 34.9 mm, 310mm length
Size: XL, L, M, ML Bontrager Line Dropper, 170 mm travel, Maxflow, internal routing, 34.9 mm, 450 mm length
*Handlebar/stem (integrated) Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Size: XL, L, M, ML Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
*Grips Size: XL, L, S , M, Bontrager XR Trail Elite, nylon lock-on
*Brake Size: XL, L, S , M, ML
SRAM Level Bronze 4-piston hydraulic disc
*Brake rotor Size: XL, L, S, M, ML
SRAM Centreline, 6-bolt, round-edge, 180 mm
Rotor size Max brake rotor sizes – Frame: 200 mm, min 180 mm, Fork: see fork manufacturer


Specifications
Weight M - 13.20 kg / 29.11 lbs (with TLR sealant, no tubes)
Weight limits This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).



We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
