Arch Cycles Dev

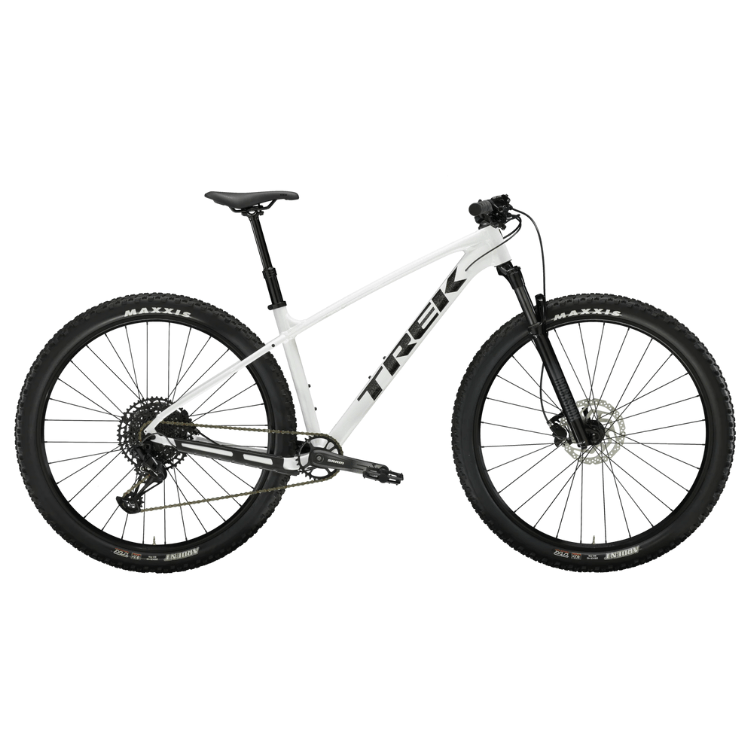

Trek Marlin 7 29" WT Gen 3 / Large

Name: Trek Marlin 7 29" WT Gen 3 / Large
Brand: Arch Cycles Dev
SKU: 5295483
Price: 25000.0 ZAR
Availability: OutOfStock

R 25,000.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

*Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Frame	Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XS , S RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
*Fork	Size: M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel	120mm, XXS: 80mm

Wheels

Hub front	Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	173x5 mm QR
Rim	Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
*Tyre	Size: XS , S Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40"
*Tyre	Size: M , ML , L , XL , XXL Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40"
Max tyre size	Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain

Shifter	SRAM SX Eagle, 12-speed
Rear derailleur	SRAM SX Eagle
*Crank	Size: XS , S , M SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
*Crank	Size: ML , L , XL , XXL SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket	Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette	SRAM PG-1210 Eagle, 11-50, 12-speed
Chain	SRAM SX Eagle, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x: 34T, 2x: 36/22

Components

Saddle	Bontrager Verse Short, stainless steel rails
*Seatpost	Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
	Size: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
	Size: ML , L , XL , XXL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
*Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
	Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm
*Brake rotor	Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm
Brake Set	Shimano MT200 hydraulic disc
Rotor size	Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight

Weight	M - 15.03 kg / 33.14 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
